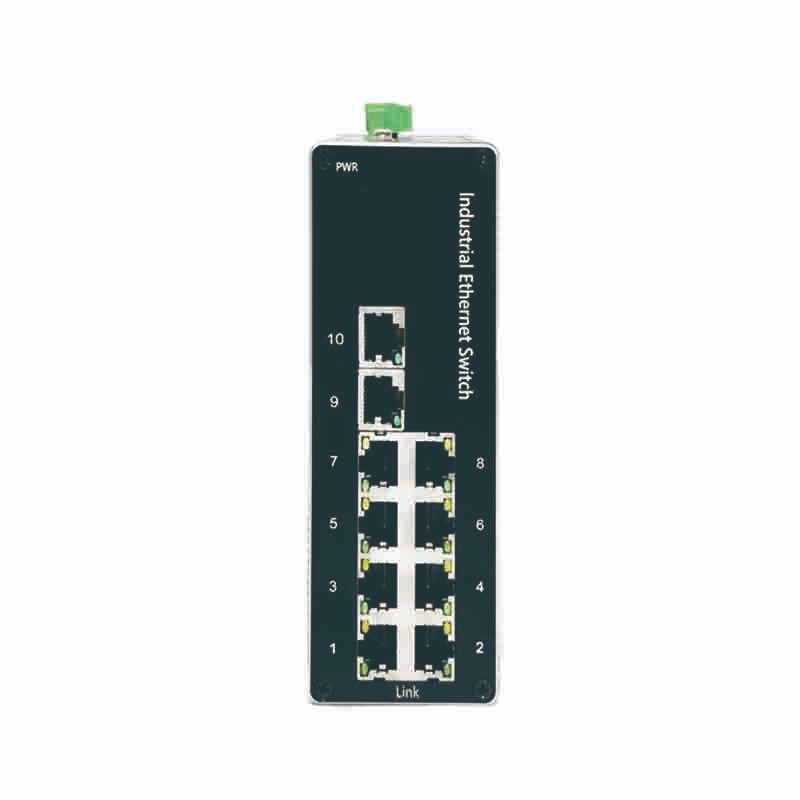

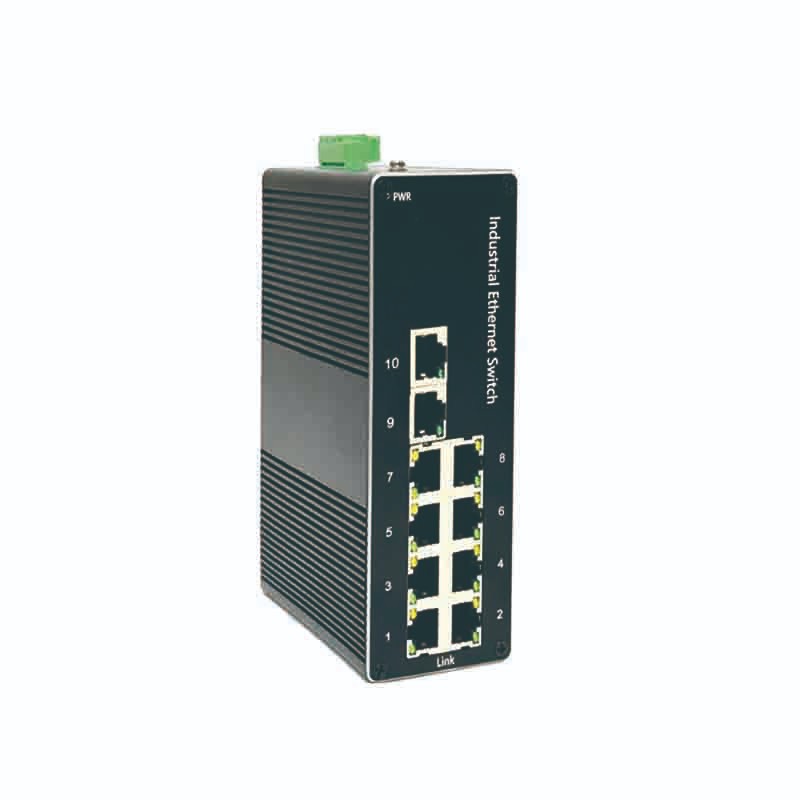

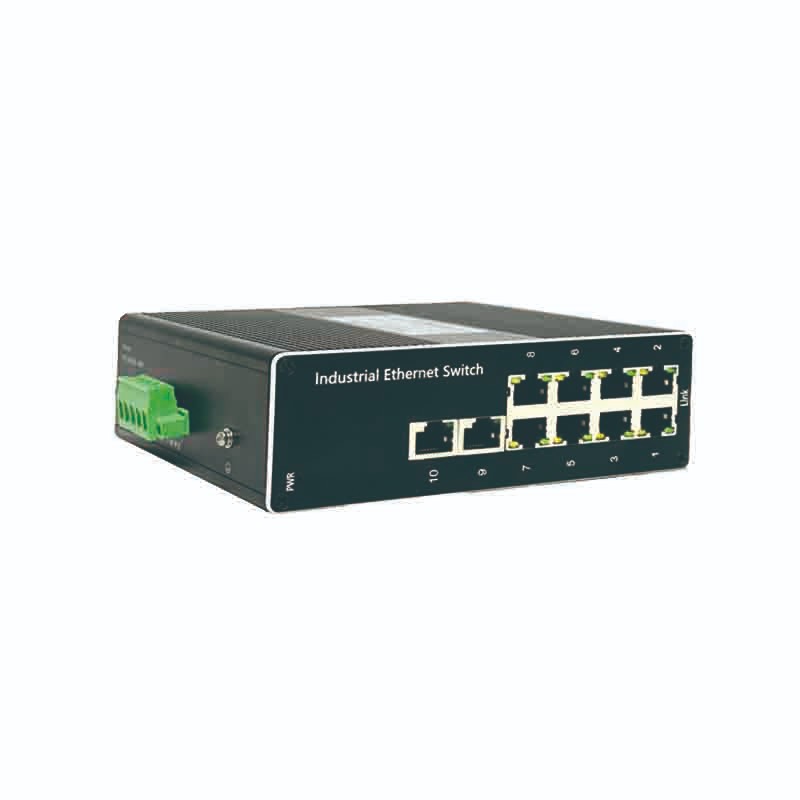

NEU20100FGP Industrial Ethernet Switch HSR Ring 8FE PoE + 2GE Uplink

NEU20100FGP is an industrial PoE Ethernet switch designed for powering and connecting edge devices in harsh environments. It offers 8 Fast Ethernet PoE ports for endpoint connections and 2 Gigabit RJ45 uplinks for high-speed backhaul to an NVR, industrial PC or core network.

The PoE ports support IEEE 802.3af and IEEE 802.3at, delivering up to 15.4W or up to 30W per PoE port to reliably power PoE cameras, wireless CPE, access control devices, intercoms and industrial sensors. This reduces the need for separate power wiring and simplifies installation in distributed sites.

To improve network robustness, NEU20100FGP supports one-click HSR seamless redundant ring for redundant ring networking and one-click VLAN isolation for device segmentation. VLAN isolation can help separate camera groups, protect industrial control traffic and reduce unnecessary broadcast traffic in multi-device deployments.

Built for industrial conditions, the switch features a fanless aluminum alloy enclosure, surge and lightning protection, electromagnetic interference resistance and vibration tolerance. It supports a wide operating temperature range of -40°C to 75°C, making it suitable for outdoor cabinets, factory floors and infrastructure sites.

Power reliability is enhanced with redundant DC 48–58V inputs and reverse polarity protection, supporting always-on monitoring and control systems.

Typical applications include industrial PoE video surveillance for factories and warehouses, roadside and parking area monitoring, perimeter security networks, and distributed automation cabinets. Common topologies include a redundant HSR ring across multiple cabinets or poles, with Gigabit uplinks connecting to the backbone network and centralized recording or control systems.

NEU20100FGP is CE, FCC, RoHS certified and includes a 5-year warranty. Datasheet and technical documentation are available to support evaluation, installation and long-term maintenance planning.
