2-port RJ45+1-port optical Fast Industrial Ethernet Media Converter

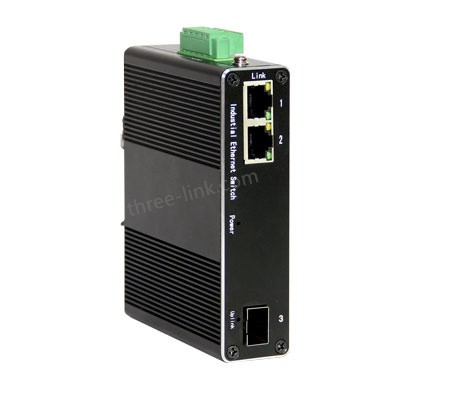

NEU1021F is a photoelectric converging integrated industrial Ethernet media converter independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field. It supports 2-port 10/100Base-TX and 1-port 10/100Base-FX, optional SC, ST, FC interface, the longest distance of optical communication can reach 120KM. Its high performance switching engine, IP40-grade aluminum alloy housing with fanless design, over-current, over-voltage, and EMC protection for power input, and excellent EMC protection for RJ45 ports make the series adaptable to harsh and dangerous industrial environments. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.

Product introduction
Product Name	2-port RJ45+1-port optical Fast Industrial Ethernet Media Converter
Model No.	NEU1021F
Product description	2-port RJ45 downlink+1-port optical(1*9)
Ethernet interface
RJ45 Port	10/100BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive
Optical port	100Base-FX port(SC/FC/ST/SFP optional)
Port Description	2-port RJ45+1-Port optical 19 (Single-Mode (1310nm) ,Dual,SC 20km）（SC/FC/ST/SFP optional） (19 is optional with “ Multi-Mode (1310nm) ,Duplex,SC 2km, or optional with “1310nm/A，1550nm/B”)
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant power support reverse connection protection
LED Indicator	Power: Green Link: Green
Standards
Network Protocols	IEEE802.3 10BASE-T;100BASE-T IEEE802.3i 10Base-T;IEEE802.3u; IEEE802.3x;
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Switch Properties
Processing Type:	Store and Forward
MAC Table Size	2K
Packet Buffer Size	1Mbit
Bandwidth	1G
Switching Delay	＜10μs
Power Consume	＜3W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy
Installation	Push-in DIN rail
Weigh	0.295kg
Dimensions	115x70x30mm（length x width x height)
Environmental Limits
Working temperature	-40～75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU1021F media converter
Documentation	1 x quick installation guide 1 x warranty card
