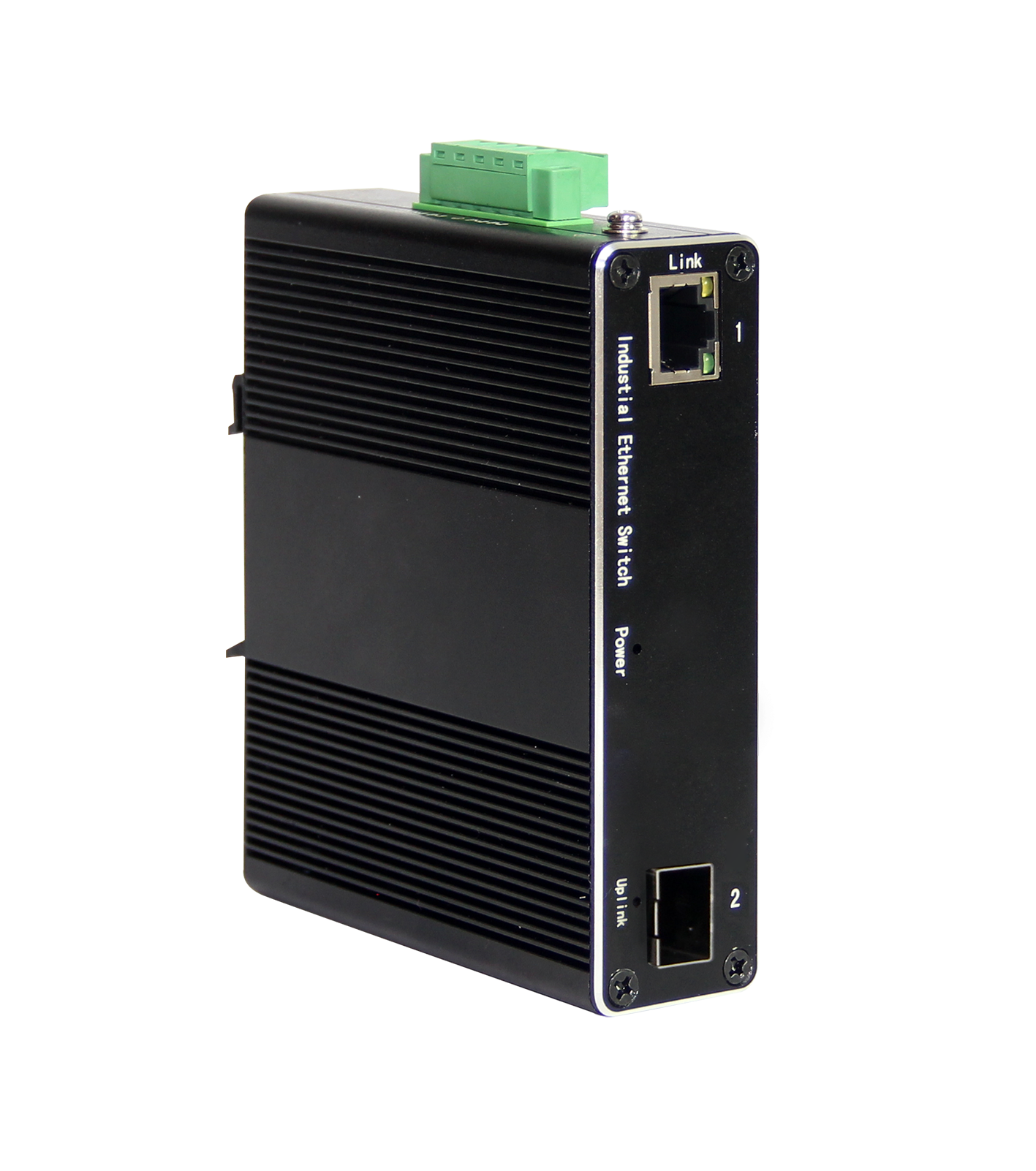

1-port RJ45+1-port optical Fast Industrial Ethernet Media Converter

NEU1011F is an optical convergence integrated Industrial Ethernet Media Converter independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field. It support 1-port 10/100Base-TX and 1-port 100Base-FX, optional SFP, SC, ST, and FC interface, and the longest optical communication distance can reach 120KM.
In addition to its compact size, it has a high-performance switching engine, a wavy aluminum alloy shell with IP40 protection level, a fanless design and efficient heat dissipation surface, and an installed power input terminal over-current, over-voltage, the NEU1011F Series features DC9-52 V redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -40°C to 75°C available. The NEU1011F Series has also passed a 100% burn-in test to ensure it will function reliably in the field. Therefore, it can provide reliable and convenient solutions for users’ Ethernet equipment networking.


Specifications:


Product introduction

Product Name

1-port RJ45+1-port optical Fast Industrial Ethernet Media Converter

Model No.

NEU1011F

Product description

1-port RJ45 downlink+1-port optical(1*9)

Ethernet interface

RJ45 Port

10/100BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive

Optical port

100Base-FX port(SC/FC/ST/SFP optional)

Port Description

1-port RJ45+1-Port optical 1*9 (Single-Mode (1310nm) ,Dual,SC 20km)(SC/FC/ST/SFP optional

(1*9 is optional with “ Multi-Mode (1310nm) ,Duplex,SC 2km, or optional with “1310nm/A1550nm/B”)

Power Parameters


Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC9 to 52V redundant power support reverse connection protection

LED Indicator

Power: Green

Link: Green

Standards

Network Protocols

IEEE802.3 10BASE-T;100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;

 IEEE802.3x;

Twisted Pair

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

2K

Packet Buffer Size

1Mbit

Bandwidth

1G

Switching Delay

10μs

Power Consume

3W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

Push-in DIN rail

Weigh

0.295kg

Dimensions

115x70x30mm length x width x height)

Environmental Limits

Working temperature

-4075℃ -40167°F

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class AEN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air

IEC(EN)61000-4-3(RS):10V/m(801000MHz)

IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz150kHz),10V(150kHz80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5years

Package Contents

Device

1 x NEU1011F media converter

Documentation

1 x quick installation guide

1 x warranty card
