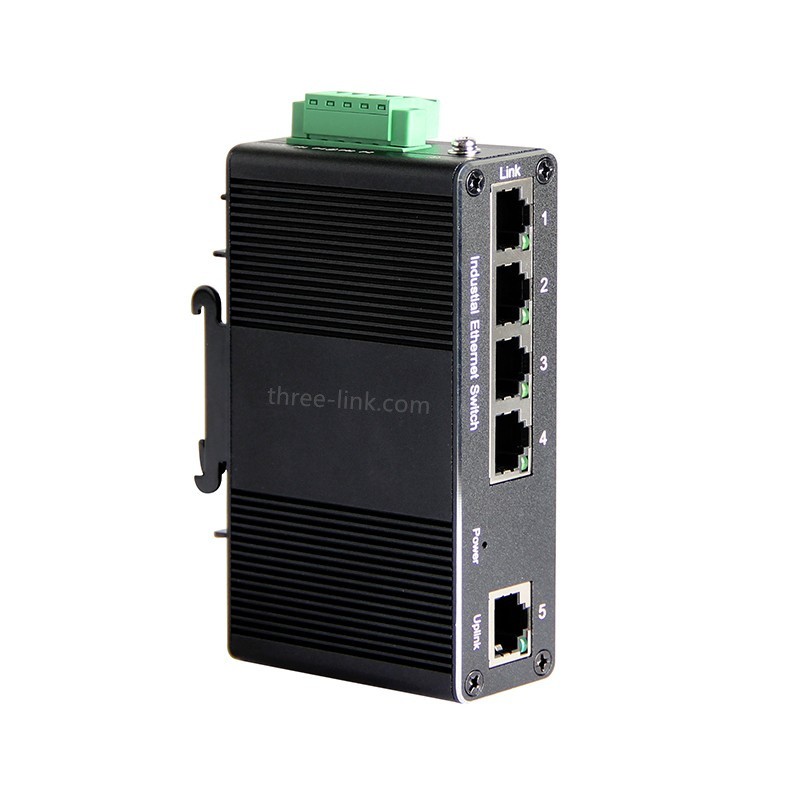

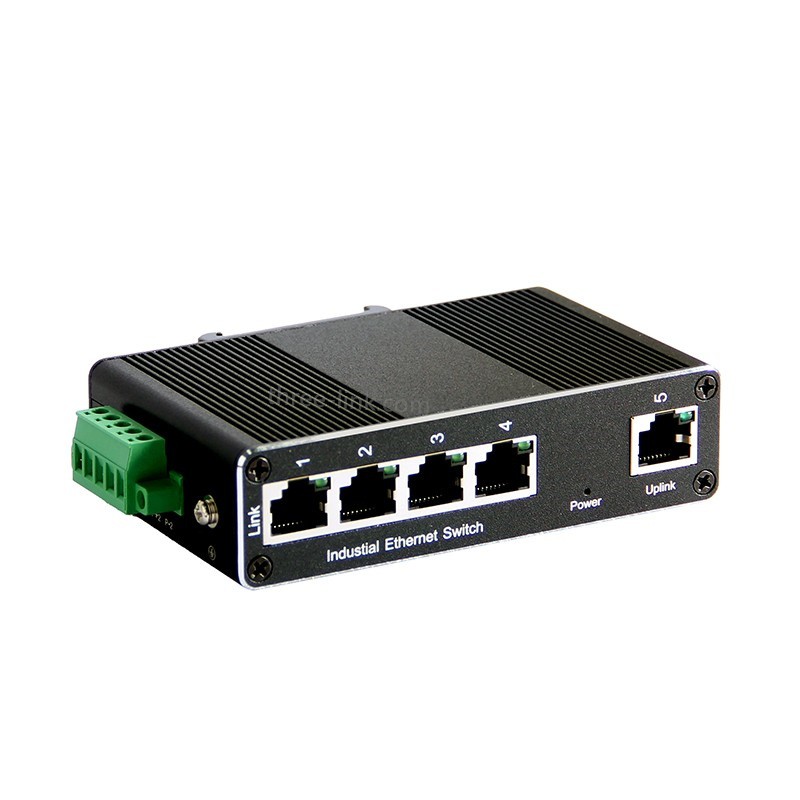

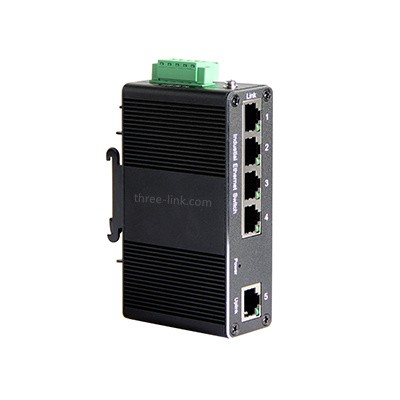

Gigabit 5-port RJ45, 5-port 1000Mbqs un-managed industrial switch series

Gigabit 5-port RJ45, 5-port 1000Mbqs un-managed industrial switch series

The 5-port 1000Mbqs un-managed industrial swith series is a photoelectric convergent integrated Industrial Ethernet switch developed by our company. The product is mainly developed for the application of industrial peer-to-peer networks, star networks, tree networks and chain networks. Support 1 ~ 6/100Base-TX and 0 ~ 1100base-fx, optional 1 ~ 4 Poe power supply (maximum support 120W) , optical port can support SC, ST, FC interface, optical communication up to 120KM. The product has high-performance industrial switch chip engine, with IP40 protection level of the compact shell, the adoption of fan-free efficient heat dissipation design and corrugated aluminum alloy shell, with excellent surge protection and EMC protection performance, to make products work efficiently in harsh industrial environments.

Specification
Product Name	Industrial Ethernet Gigabit Series Unmanaged Switch
Model No.	NEU1050G
Product description	Gigabit 1-port RJ45 uplink+4-port RJ45 downlink
Port Description	5-port RJ45
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;
RJ45 Port	10/100/1000BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive
Optical port	1000Base-FX (SC/FC/ST/SFP optional)
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Performance Specification	Transmission: Store and Forward MAC address Table: 2K Packet Buffer Memory: 2Mbit Bandwidth: 10G Switching Delay: ＜10μs Power Consume: ＜5Watts
Protection level	IP40
LED Indicator	Power indicator: Power Interface indicator: RJ45(Link),Optical port (Uplink)
Power	Access terminal: Terminal Input voltage: DC9 to 52V (Dual power redundant backup) Supports reverse connection protection
Work Temperature	Working temperature: -40～85℃ （-40～185 °F） Storage temperature: -40～85℃ （-40～185 °F） Relative Humidity: 5%~95 %( no condensation)
Industrial Standard	EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS :IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±8kV Indirect discharge,±15kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8 Shock：IEC 60068-2-27 Freefall：IEC 60068-2-32 Vibration：IEC 60068-2-6
Basic characteristics	Enclosure：Wavy aluminum alloy Installation：Push-in DIN rail Weight：0.3kg Dimensions：115x86x30mm （length x width x height）
