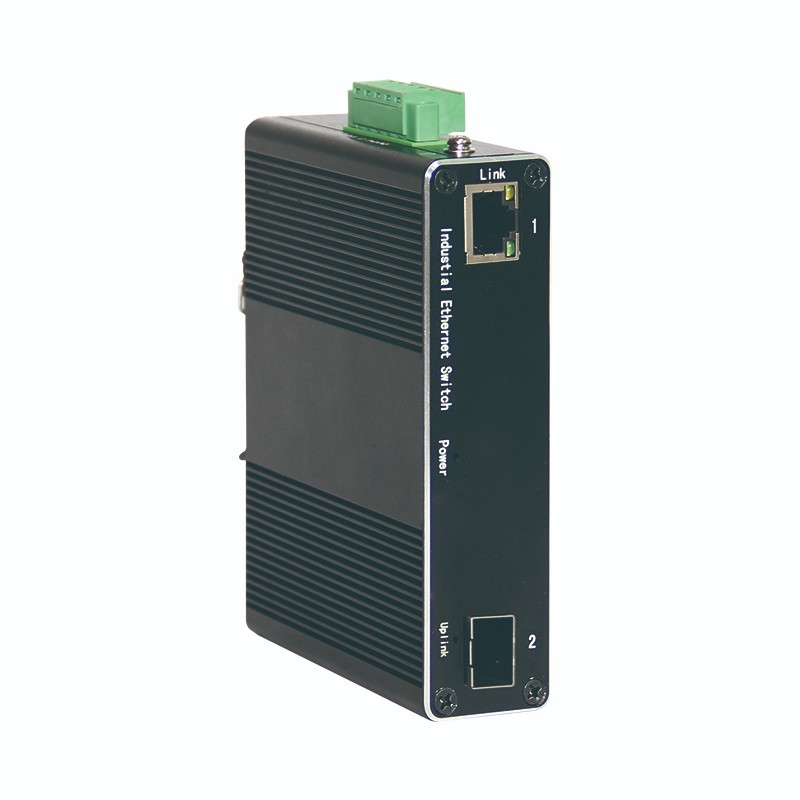

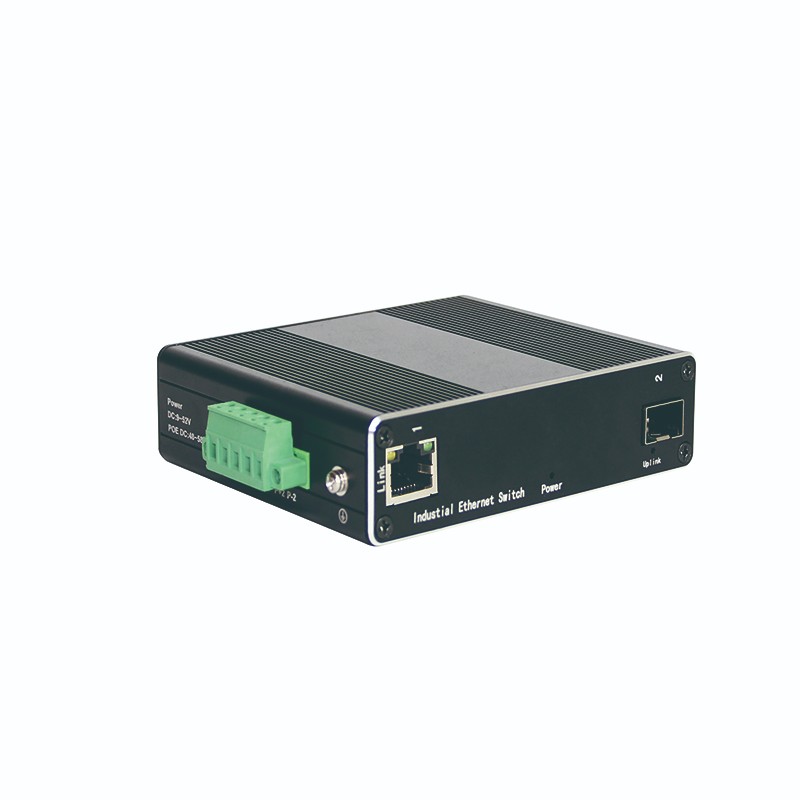

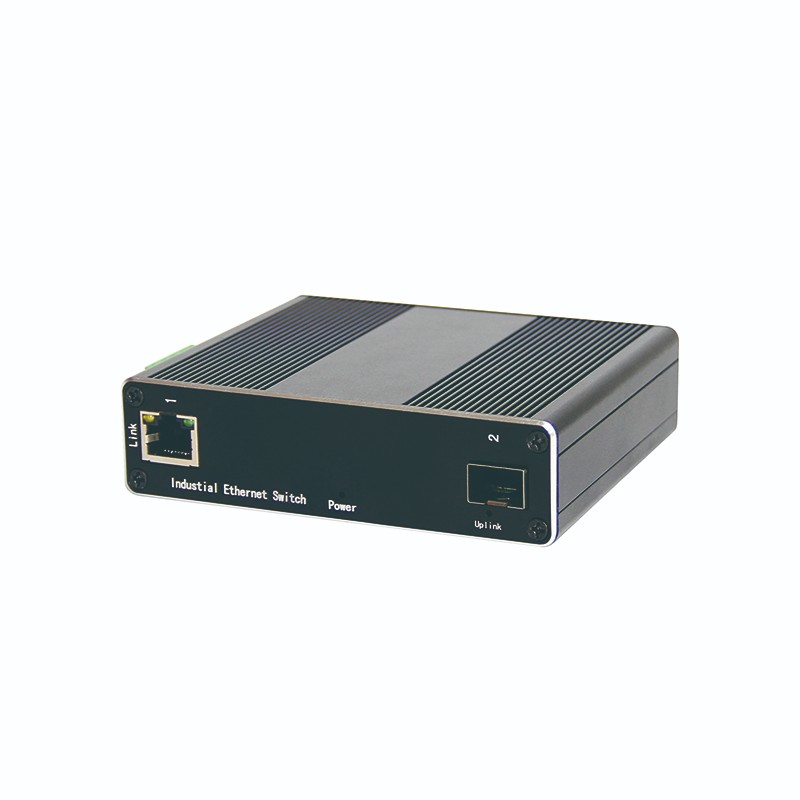

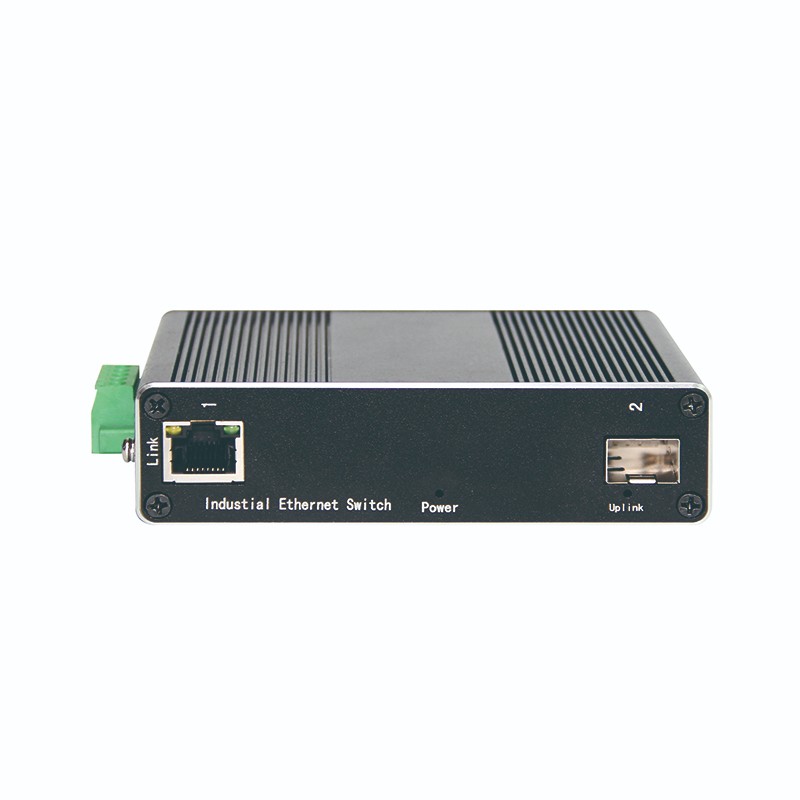

NEU1011FP Unmanaged Industrial Ethernet PoE Converter, 1RJ45 + 1SFP

NEU1011FP is an industrial PoE fiber converter created for reliable Ethernet extension in automation and surveillance systems. It combines PoE power delivery and fiber uplink connectivity in a compact, DIN-rail mountable device, making it easy to deploy inside control cabinets or protected enclosures.

The RJ45 port supports 10/100Base-TX with automatic detection and MDI/MDI-X, and provides IEEE 802.3af/at PoE output up to 30W for compatible powered devices. The fiber uplink uses an SFP interface to connect to a fiber backbone, helping improve distance and immunity to electromagnetic interference in industrial sites. Store-and-forward forwarding behavior supports stable data delivery in typical industrial network traffic patterns.

To match harsh field requirements, NEU1011FP is designed with industrial anti-surge, anti-lightning and anti-EMI protection, along with a vibration-resistant structure. Its fanless aluminum housing supports efficient heat dissipation and IP40 protection. The operating temperature range is -40°C to 75°C to support demanding installations.

Power design is optimized for continuous operation. The converter supports redundant DC 48–58V wide voltage input and reverse connection protection, helping reduce downtime risk caused by wiring errors or power instability. This makes NEU1011FP suitable for industrial networking deployments where uptime is critical.

Typical use cases include fiber-to-PoE extension for IP cameras along highways or tunnels, PoE powering for wireless APs in factories and warehouses, and edge connectivity for industrial controllers and sensors. A typical topology is fiber from the control room industrial Ethernet switch to NEU1011FP at the edge, then a single PoE Ethernet cable from NEU1011FP to the field device for both data and power.

NEU1011FP is CE, FCC, RoHS certified and comes with a 5-year warranty. Datasheet and technical documentation are available to support engineering selection and project delivery.
