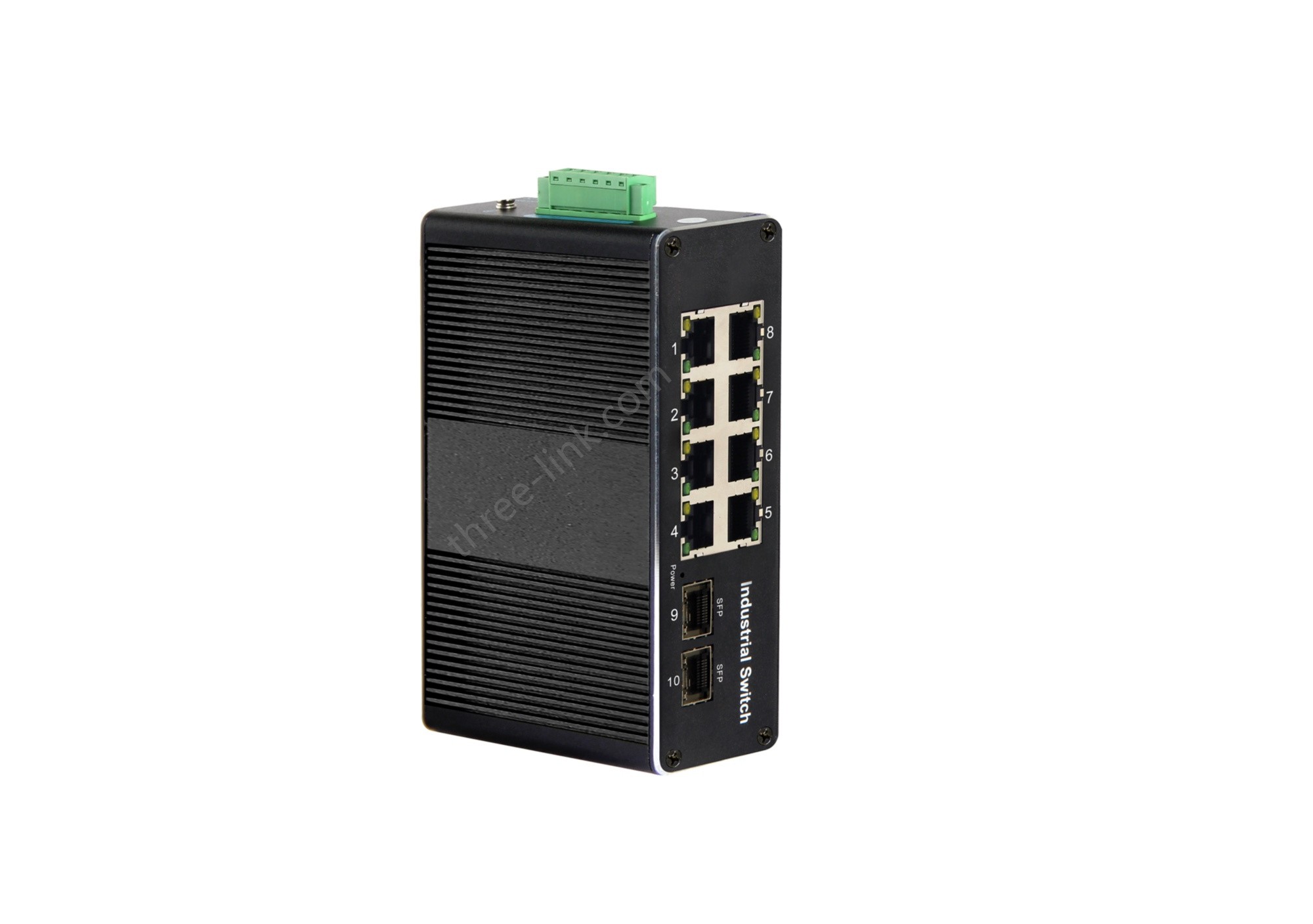

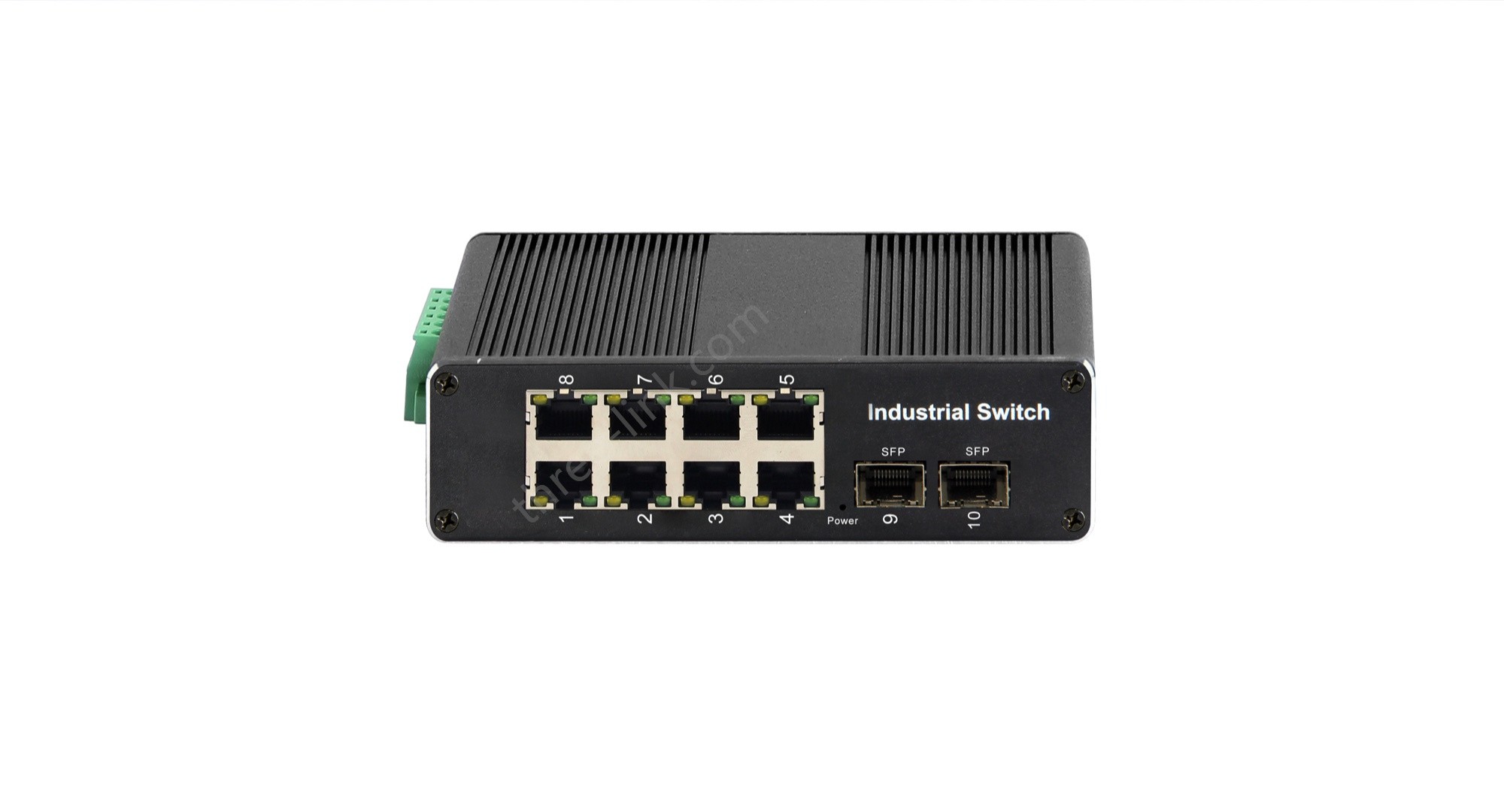

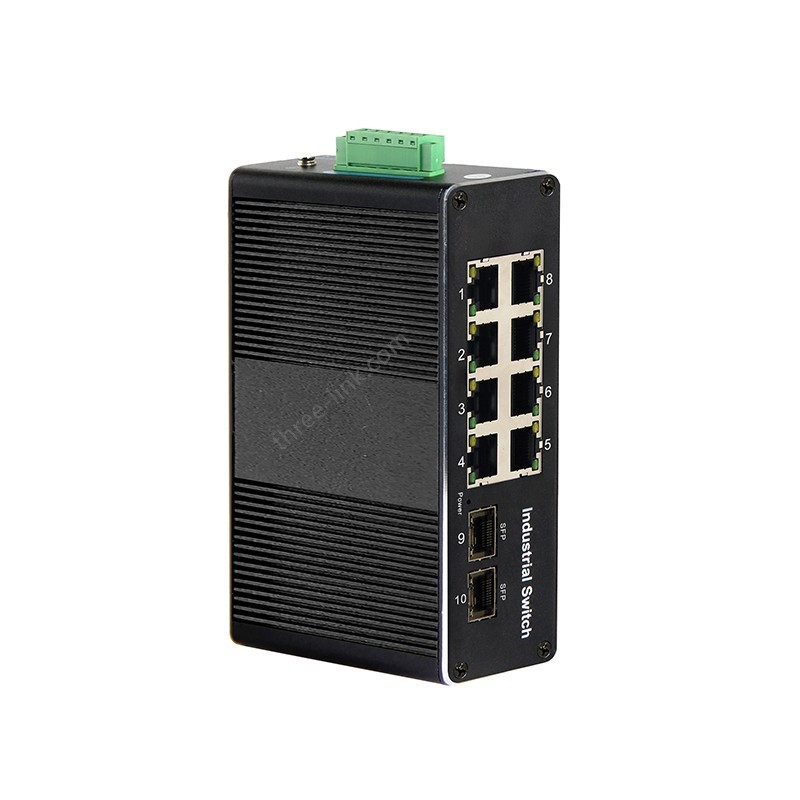

Gigabit 8-port RJ 45+2*1G SFP,10-port Unmanaged Dual Optical Series

The 10-port unmanaged dual optical series is an optical convergence type integrated industrial Ethernet fiber optic switch developed by our company. It is mainly developed for the application of point-to-point network, star network, tree network and chain network in the industrial field. It supports 4~6 ports 10/100Base-TX or 4~8 ports 10/100/1000Base-TX and 1~2 ports 100Base-FX or 1~2 1000Base-FX ports. The product has high-performance industrial switch chip engine, with IP40 protection level of the compact shell, the adoption of fan-free efficient heat dissipation design and corrugated aluminum alloy shell, with excellent surge protection and EMC protection performance, to make products work efficiently in harsh industrial environments. And it can provide a reliable and convenient solution for the users’ Ethernet equipment networking.

Specification:

Model No.: NEU1082G

RJ45 port: 8-port-10/100/1000Base-TX

Optical port: 2-port-1000Base-FX

Port Description:

                RJ45 port: 10/100/1000BaseT(X)Automatic detection, Full/half duplex MDI/MDI-x adaptive

         Optical port: 1000BaseFX-SFP Port

Network Protocols:

         IEEE802.3 10BASE-T;   IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

         IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;

Performance Specification:

               Transmission: store and forward     MAC address: 8K

               Packet Buffer Memory: 2.5 Mbit        Bandwidth: 20G

               Switching Delay: <10 μs                 Power Consume: <8Watts

Power:

   Access Terminal: Terminal

   Input Voltage: DC 9 ~ 52V (dual power redundant backup) to support reverse protect

Working environment:

        Working temperature: -40~75℃ (-40~167 °F)

        Storage temperature: -40~85℃ (-40~185 °F)

        Relative Humidity: 5%~95 %( no condensation)

Industrial standard:

      EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

      EMS :IEC(EN)61000-4-2(ESD):±8kV Contact discharge,±15kV air discharge

      IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)

      IEC(EN)61000-4-4(EFT):power line:±6kV;data line:±4kV

      IEC(EN)61000-4-5(Surge):power line:±4kV CM/±2kV DM; data line:±2kV

      IEC(EN)61000-4-6(RF conduction):3V(10kHz~150kHz),10V(150kHz~80MHz)

      IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

      IEC(EN )61000-4-8

      Shock:IEC 60068-2-27

      Freefall:IEC 60068-2-32

       Vibration:IEC 60068-2-6

Mechanical properties:

      Enclosure: IP40 Wavy aerospace standard aluminum alloy

      Installation: DIN-rail

      Weight: 0.6kg

      Size: 150 x 130 x 53 mm (length x width x height)
