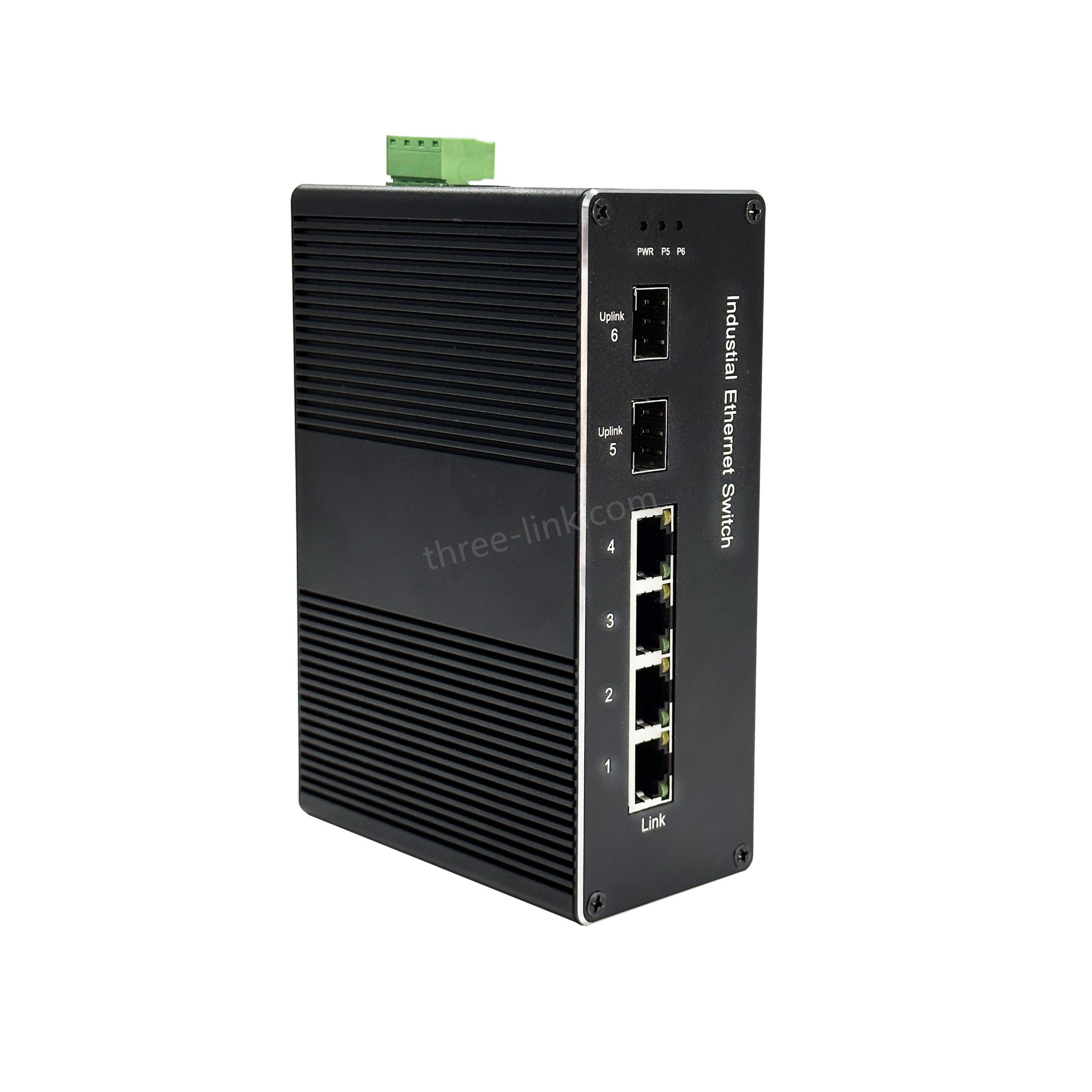

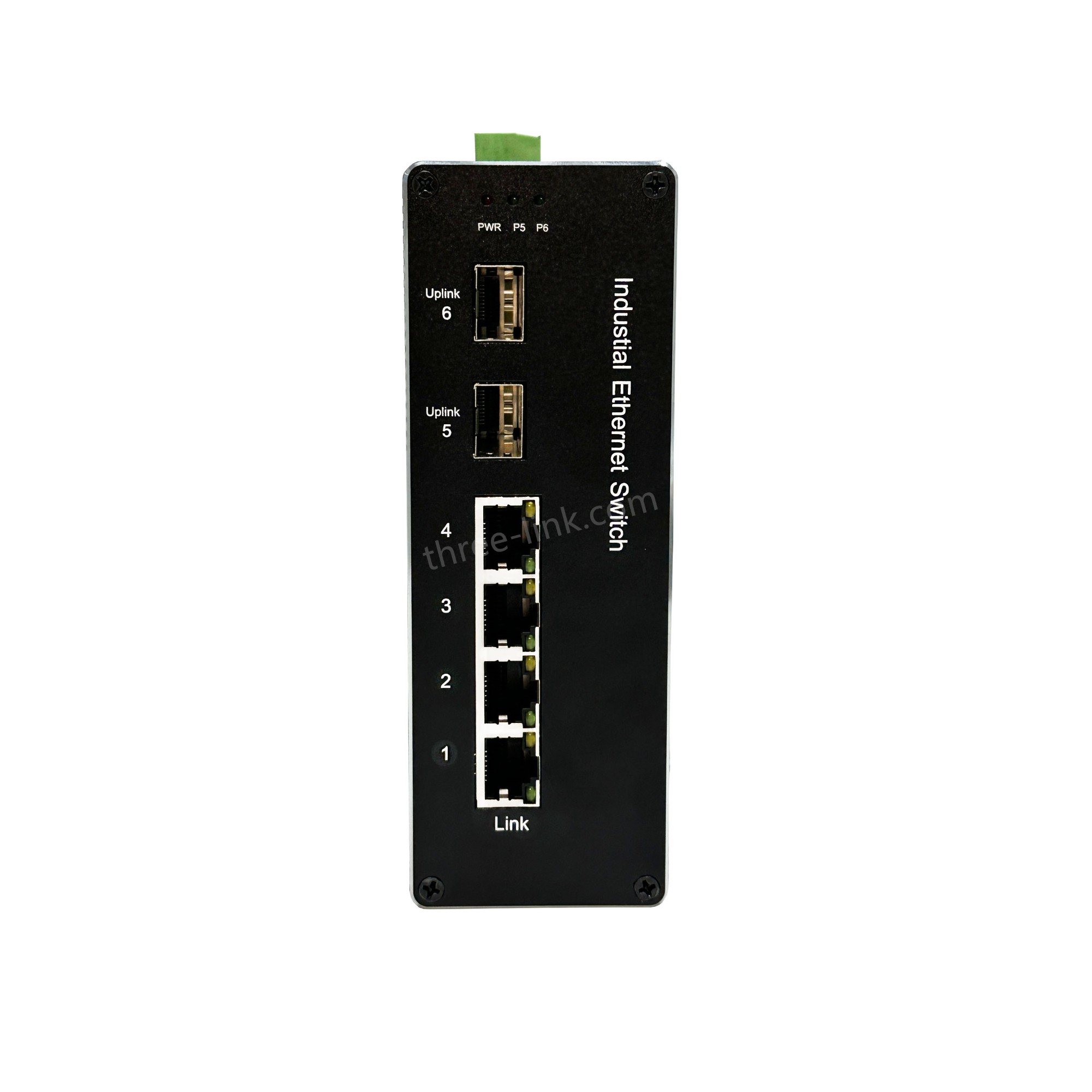

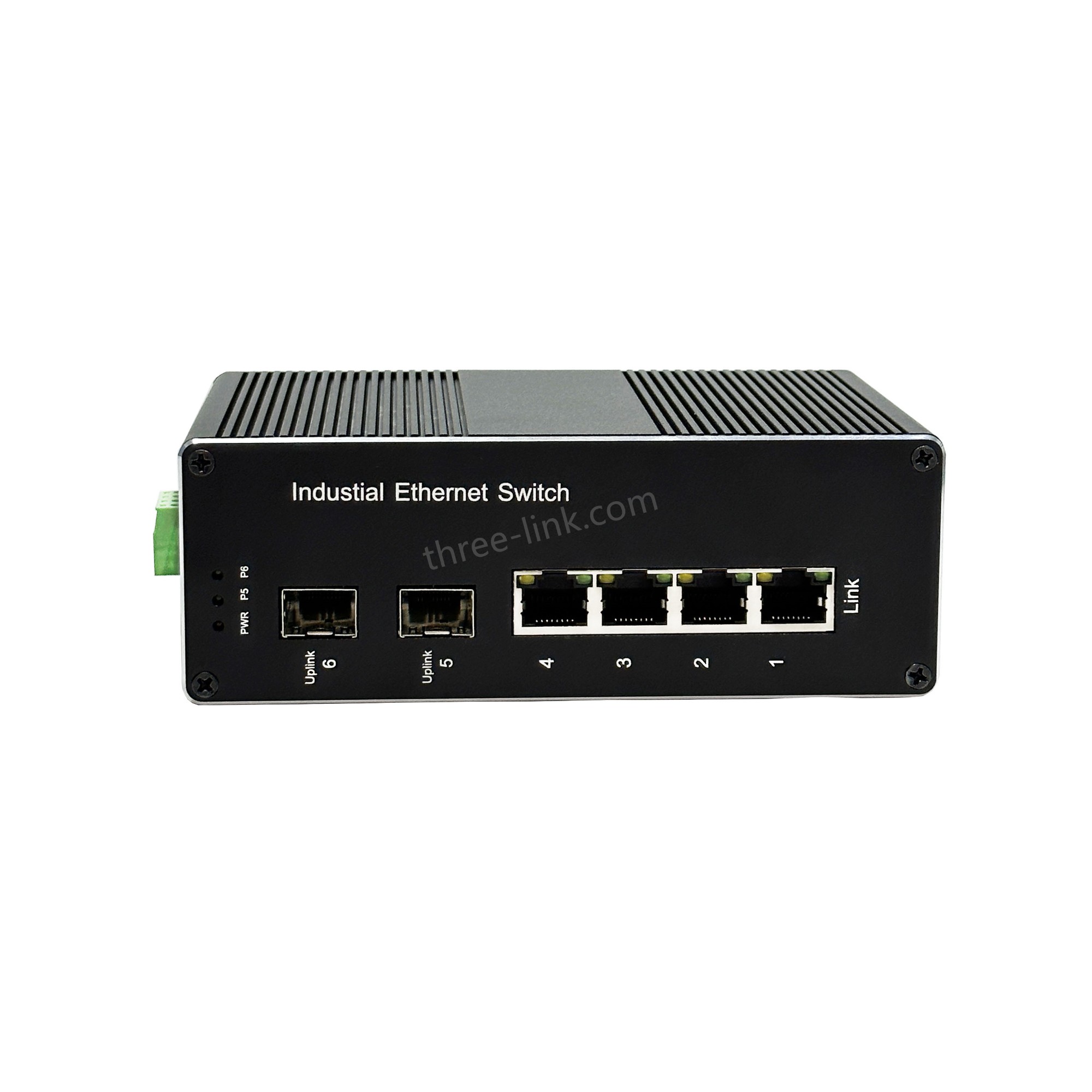

4-port RJ45+2*1G SFP Gigabit WEB Management Industrial Ethernet Switch

The 4-port RJ45+2G SFP is an integrated Industrial Ethernet management optical fiber switch developed by our company. This product is mainly developed for the application of Point Star Network, Tree Network, chain network, and ring network in the industrial field. It supports Gigabit 4-port Ethernet adaptive, 2-port SFP, and has a redundant self-healing ring (recovery time<50ms) to realize single loop, tangent, and intersection loop protocols, support for broadcast storm suppression, port mirroring, port priority QoS settings, port aggregation functions. The product has a high-performance industrial switch chip engine, with an IP40 protection level of the compact shell, the adoption of fan-free efficient heat dissipation design and corrugated aluminum alloy shell, with excellent surge protection and EMC protection performance, to make products work efficiently in harsh industrial environments. The compact size of the gigabit speed allows for fast rail installation in tight spaces. And it can provide a reliable and convenient solution for the users’ Ethernet equipment networking.

Product introduction

Model No.

NEU2042GW-SFP

Product description

4-port RJ45+2*1G SFP Gigabit WEB Management Industrial Ethernet Switch

Ethernet interface

RJ45 Port

4-port 10/100/1000Base-TX

Optical port

2-port 1000Base-FX

Port Description

10/100/1000BaseT(X),Automatic detection,Full/half duplex MDI/MDI-x adaptive

1000Base-FX port (SFP)

Power Parameters


Power

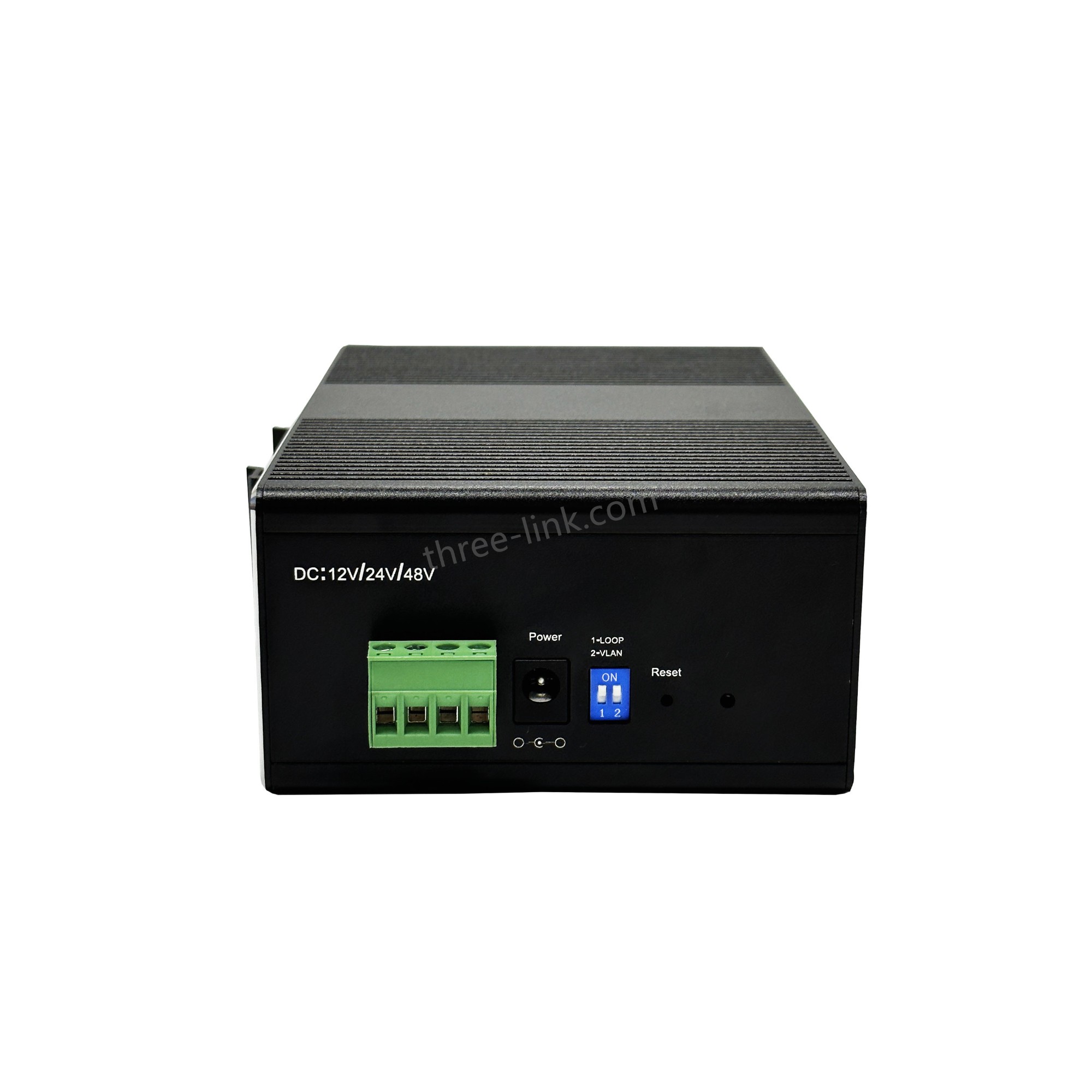

Connection: 1 removable 4-contact terminal block(s)

Input voltage: DC12 to 52V redundant power support reverse connection protection

LED Indicator

Power: Red

Link: Green

Standards

Network Protocols

IEEE802.3-10BaseTIEEE802.3u-100BaseTX/100Base-FXIEEE802.3x-Flow ControlIEEE802.3z-1000BaseLXIEEE802.3ab-1000BaseTXIEEE802.1ab Logical Link Discovery ProtocolIEEE802.1D-Spanning Tree ProtocolIEEE802.1w-Rapid Spanning Tree ProtocolAPS
IEEE802.1Q -VLAN TaggingIEEE802.1p -Class of ServiceIEEE802.1X-Port Based Network Access Control

Twisted Pair

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

4K

Packet Buffer Size

4Mbit

Bandwidth

14.5G

Switching Delay

10μs

Power Consume

5W

Function

Redundant Protocol

Support STP/RSTP

Switch Function

Support port speed limit, convergence, flow control

Support port VLAN, IEEE 802.1Q VLAN

Support broadcast storm

Manage and maintain

Support Web-management

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

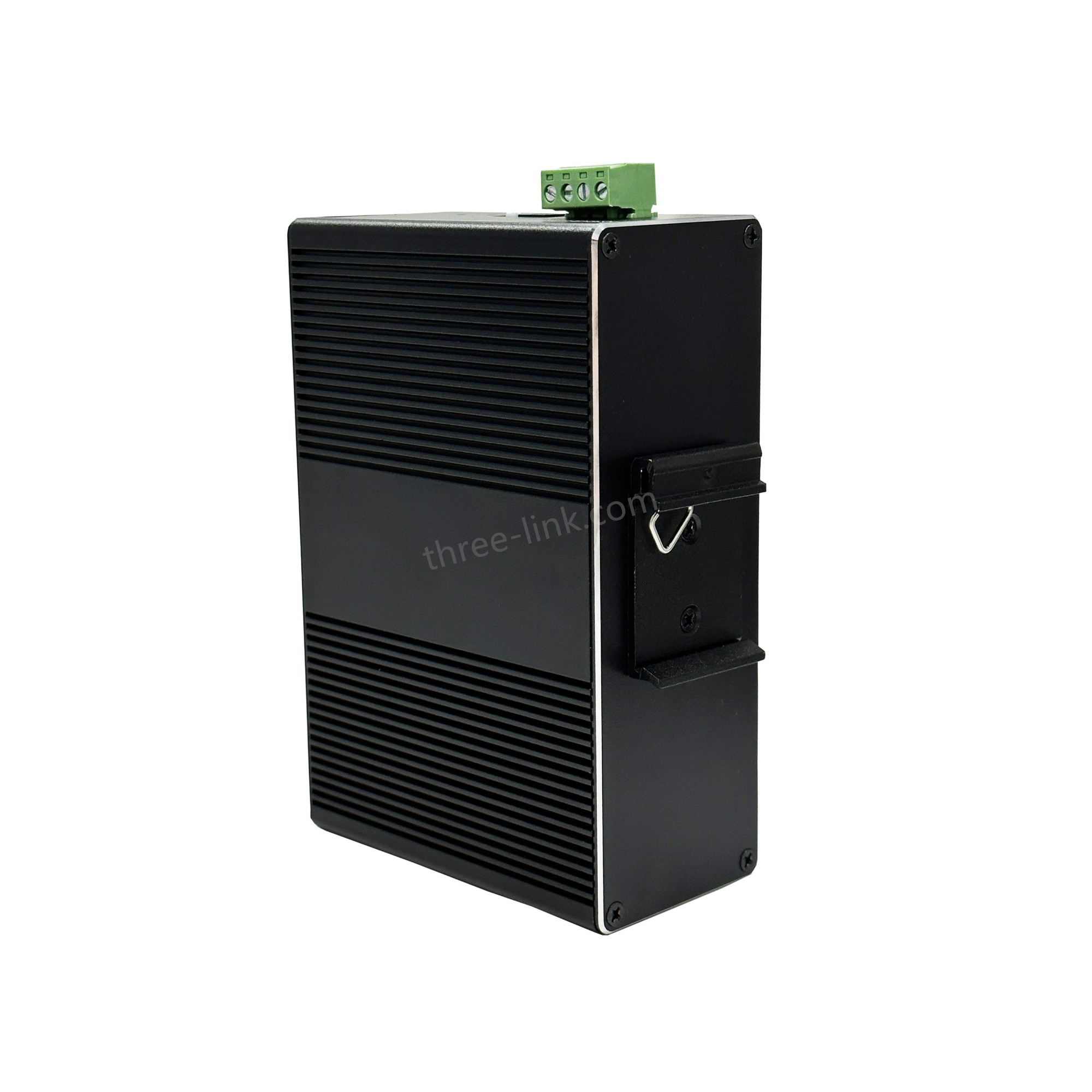

Push-in DIN rail

Weigh

0.78kg

Dimensions

150x100x53mm length x width x height)

Environmental Limits

Working temperature

-4075℃ -40185 °F

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class AEN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD):±4kV Contact discharge,±8kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(801000MHz)

IEC(EN)61000-4-4(EFT): power line:±2kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±2kV CM/±1kV DM; data:±1kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz150kHz),10V(150kHz80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5years

Package Contents

Device

1 x NEU2042GW switch

Documentation

1 x quick installation guide

1 x warranty card
