5-802.3af/at PoE 10/100 Base TX Fast unmanaged Industrial POE Switch

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC 48-58V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★Long service life, MTBF 300,000 hours, 5-year warranty
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Product Introduction
Model No.	NEU1050FP
Product description	5-802.3af/at PoE 10/100 Base TX Fast unmanaged Industrial POE Switch
Port Description	1-port 10/100Base-FX uplink+ 4-port 10/100Base-TX POE
Ethernet interface
RJ45 Ports	1 RJ45 port + 4-port RJ45 maximum 30W POE output
RJ45 Port Description	10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Standards
Network Protocols	IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;IEEE802.3x;
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
POE Standard
Output Power :	Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) PoE port automatically recognizes af/at PoE power supply pins: corresponding pins V+ (1, 2) V- (3, 6)
Switch Properties
Processing Type	Store and Forward
MAC Table Size	2K
Packet Buffer Size	1Mbit
Bandwidth	1G
Switching Delay	＜10μs
Power Consume	＜245Watts
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC48 to 58V redundant dual inputs support reverse connection protection
LED Indicator	Power: Green Link: Green
Physical Characteristics
Enclosure	Wavy aluminum alloy
Protection level	IP40

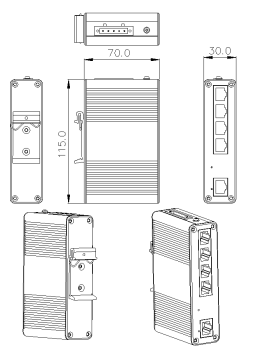

Dimensions	115x70x30mm （length x width x height)
Weigh	0.45kg

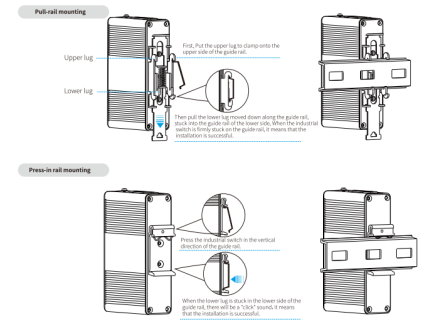

Installation	Push-in DIN rail
Environmental Limits
Operating Temperature	-40～75℃ （-40～185 °F）
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU1050FP switch
Documentation	1 x quick installation guide 1 x warranty card
