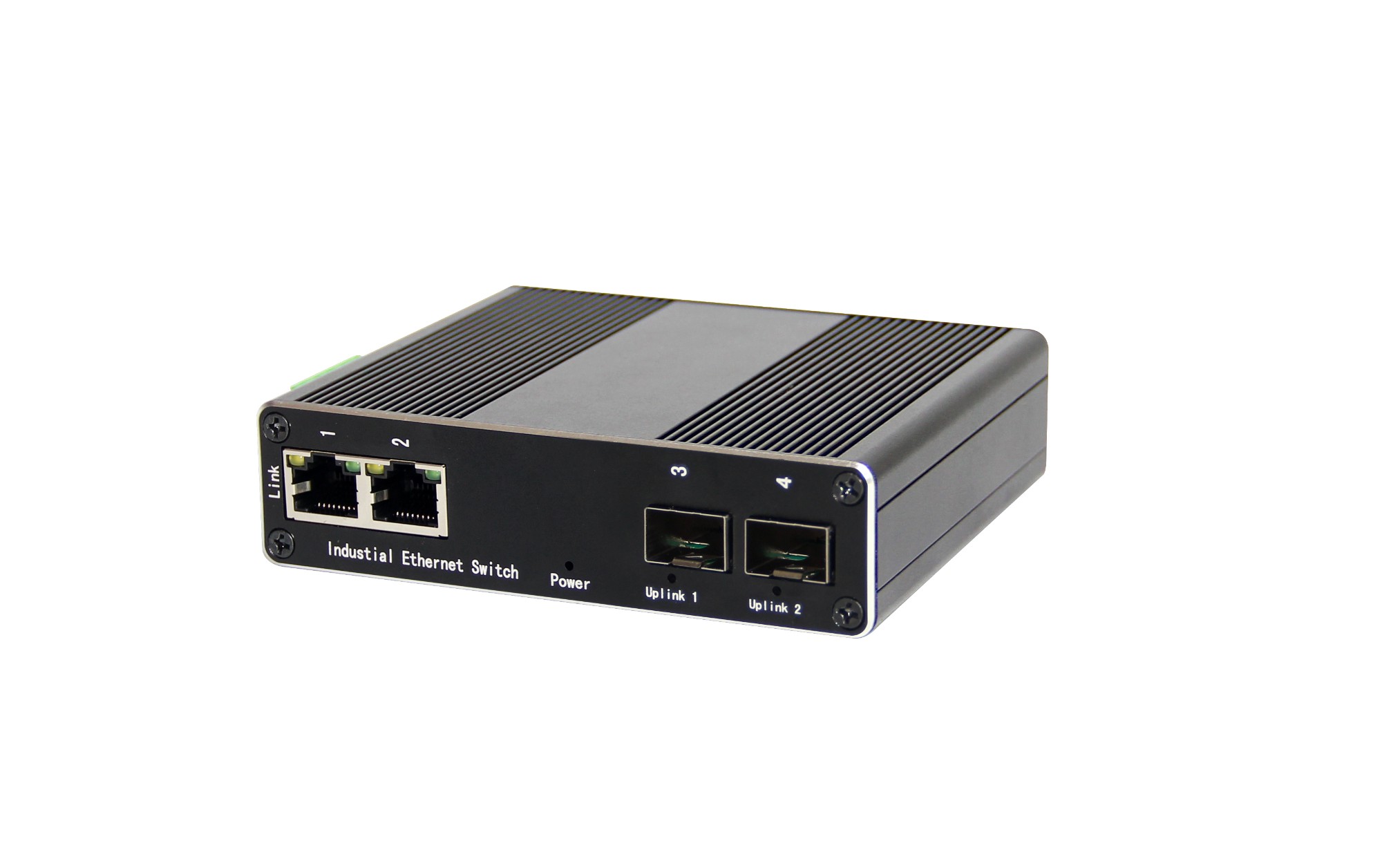

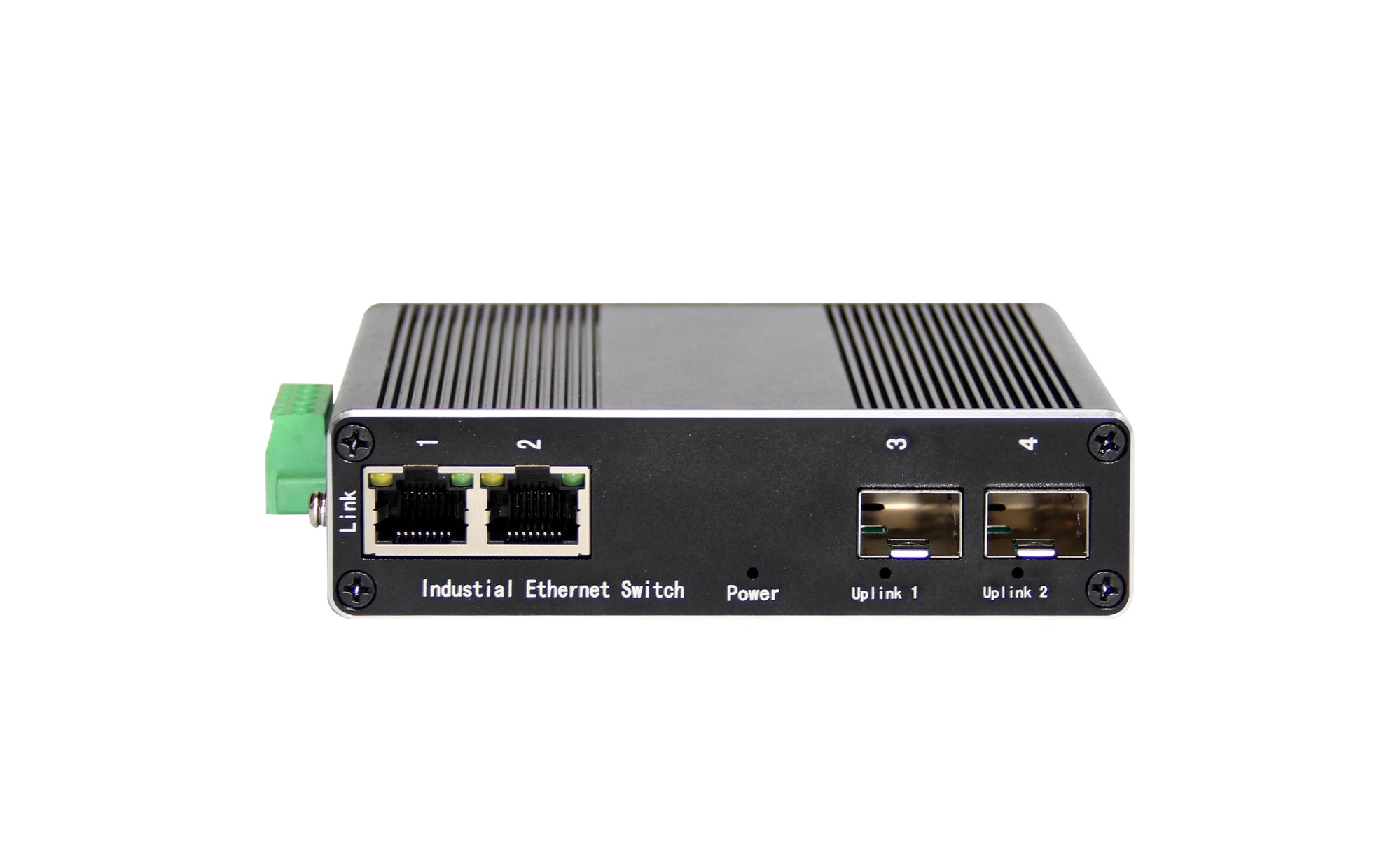

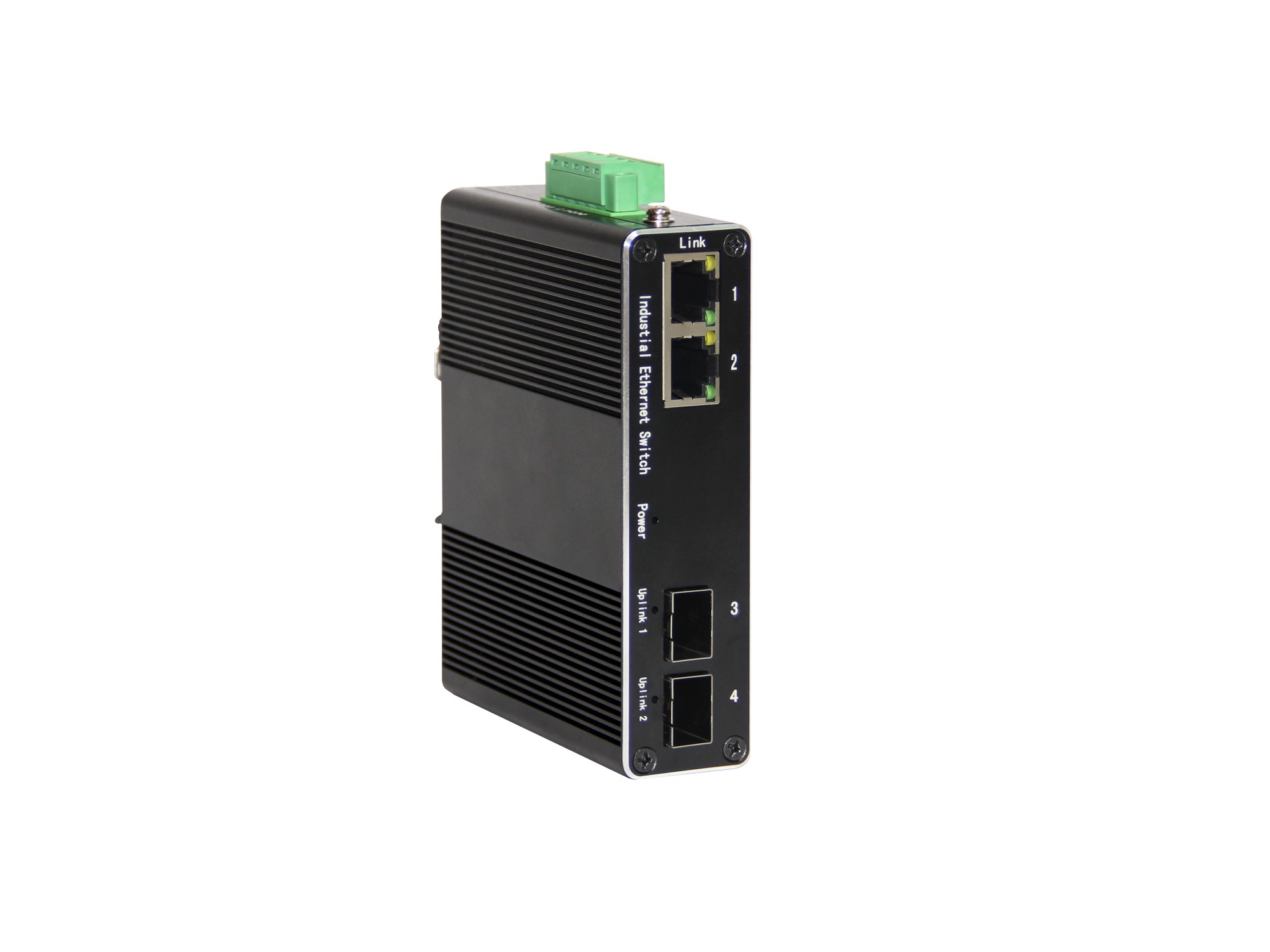

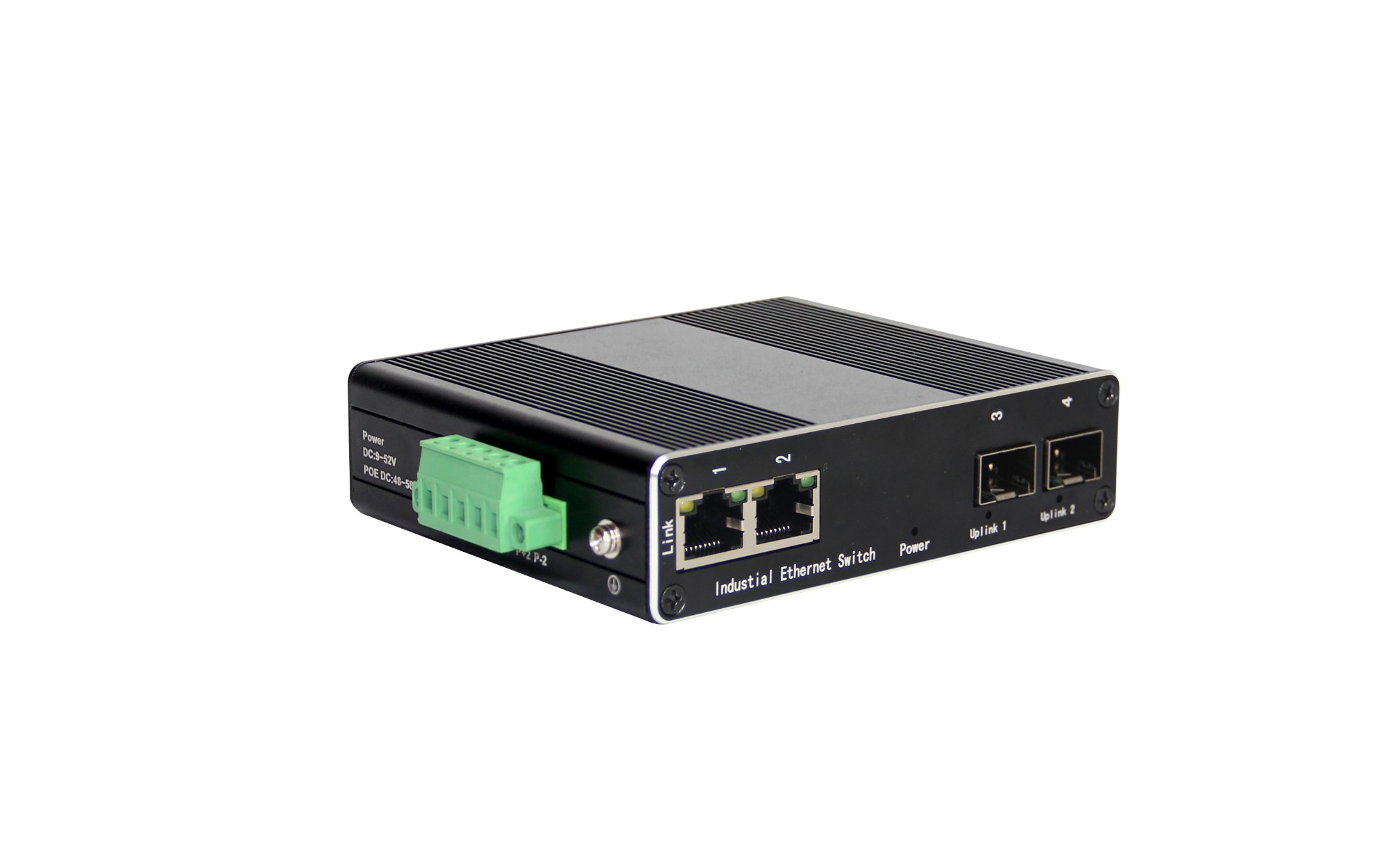

2-port RJ45+2*1G/2.5G SFP 2.5G Gigabit Unmanaged Industrial Media Converter

2-port RJ45+2*1G/2.5G SFP 2.5G Gigabit Unmanaged Industrial Media Converter

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC 9-52V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★Long service life, MTBF 300,000 hours, 5-year warranty
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Specification

Product introduction
Model No.	NEU1022GZ
Product description	2-port RJ45+2-100M/1G/2.5GBase FX Gigabit unmanaged Industrial Switch
Ethernet interface
RJ45 Port	2-10/100/1000Base-TX
Optical port	2-100M/1G/2.5GBaseFX
Port Description	RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive Optical port：100M/1G/2.5GBaseFX (Optional SC/SFP port)
Power Parameters
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC9 to 52V redundant dual inputs support reverse connection protection
LED Indicator	Power: Green Uplink: Green Interface indicator: Left of RJ45:Orange(POE) Right of RJ45: Green(Data light)
Standards
Network Protocols	IEEE802.3 10BASE-T;IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab;1000Base-T;IEEE802.3z;IEEE802.3bz;;1000Base-X;2500Base-X;IEEE802.3x;
Twisted Pair	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Switch Properties
Processing Type:	Store and Forward
MAC Table Size	4K
Packet Buffer Size	2Mbit
Bandwidth	20G
Switching Delay	＜10μs
Power Consume	＜5W
Physical Characteristics
Protection level	IP40
Enclosure	Wavy aluminum alloy
Installation	Push-in DIN rail
Weigh	0.40kg
Dimensions	115x86x30mm （length x width x height)
Environmental Limits
Working temperature	-40～75℃ （-40～167 °F）
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD):±4kV Contact discharge,±8kV Air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±2kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±2kV CM/±1kV DM; data:±1kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
MTBF
Time	300 000hrs
Warranty
Warranty Period	5years
Package Contents
Device	1 x NEU1022GZ switch
Documentation	1 x quick installation guide 1 x warranty card
