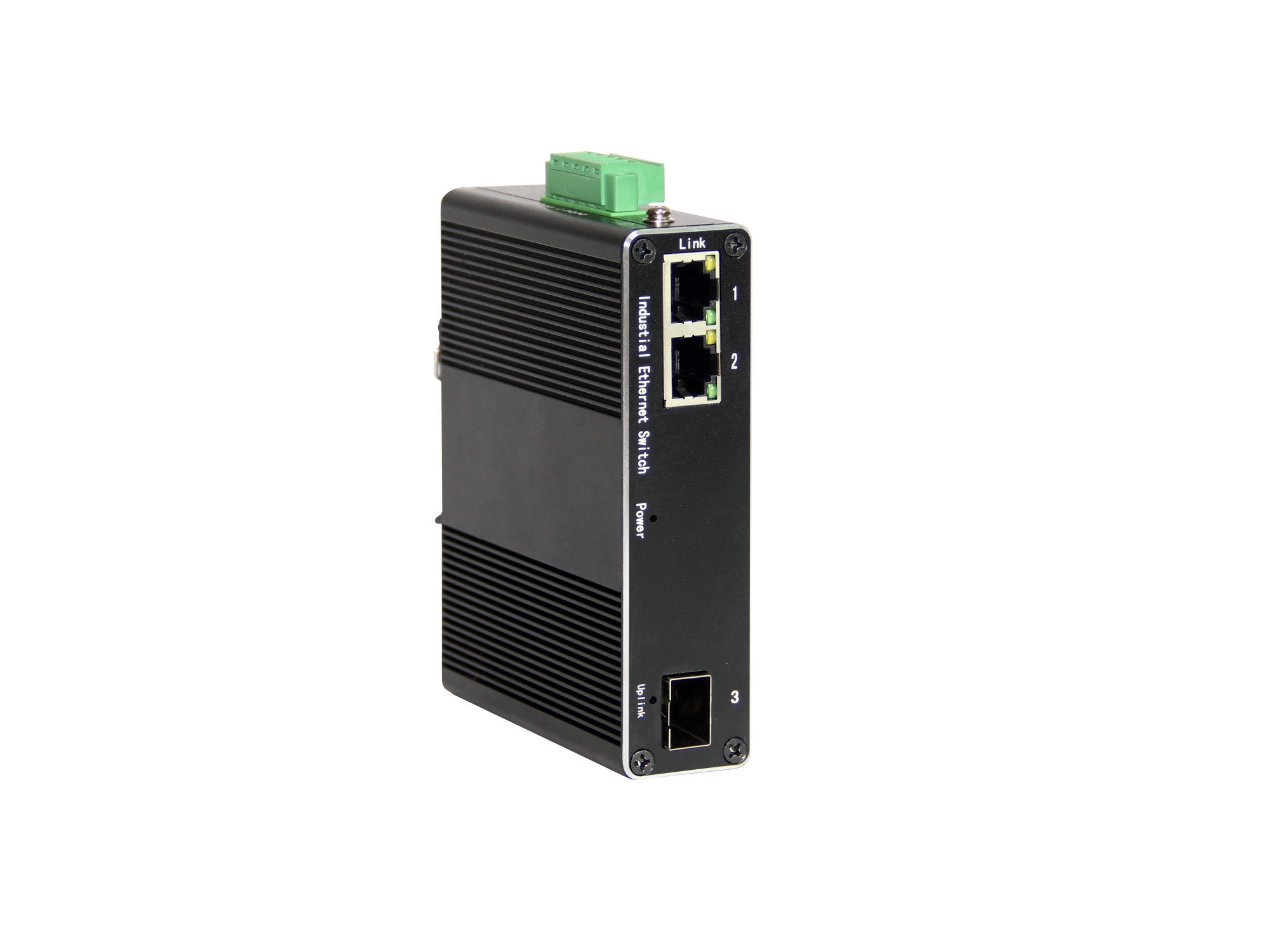

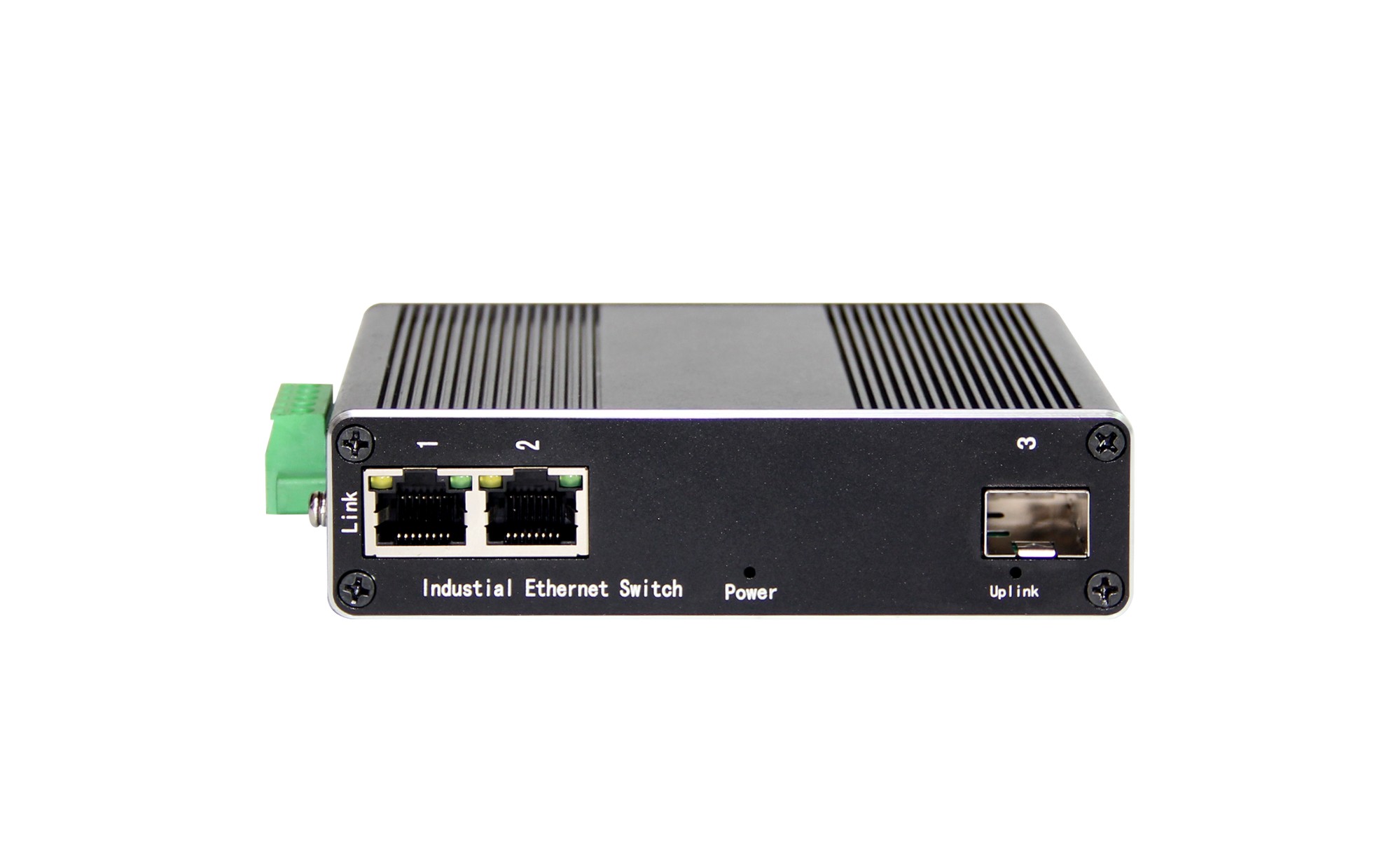

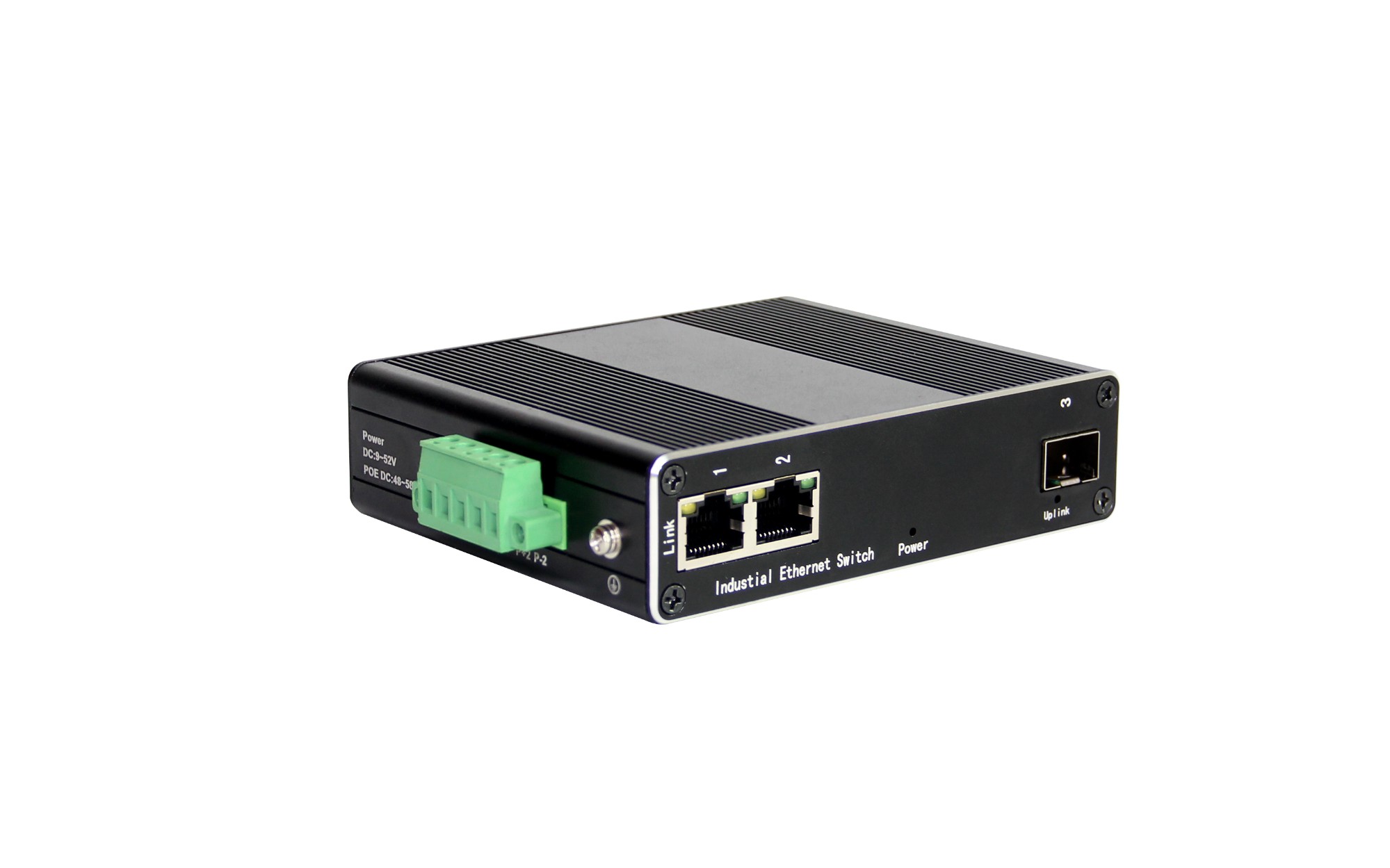

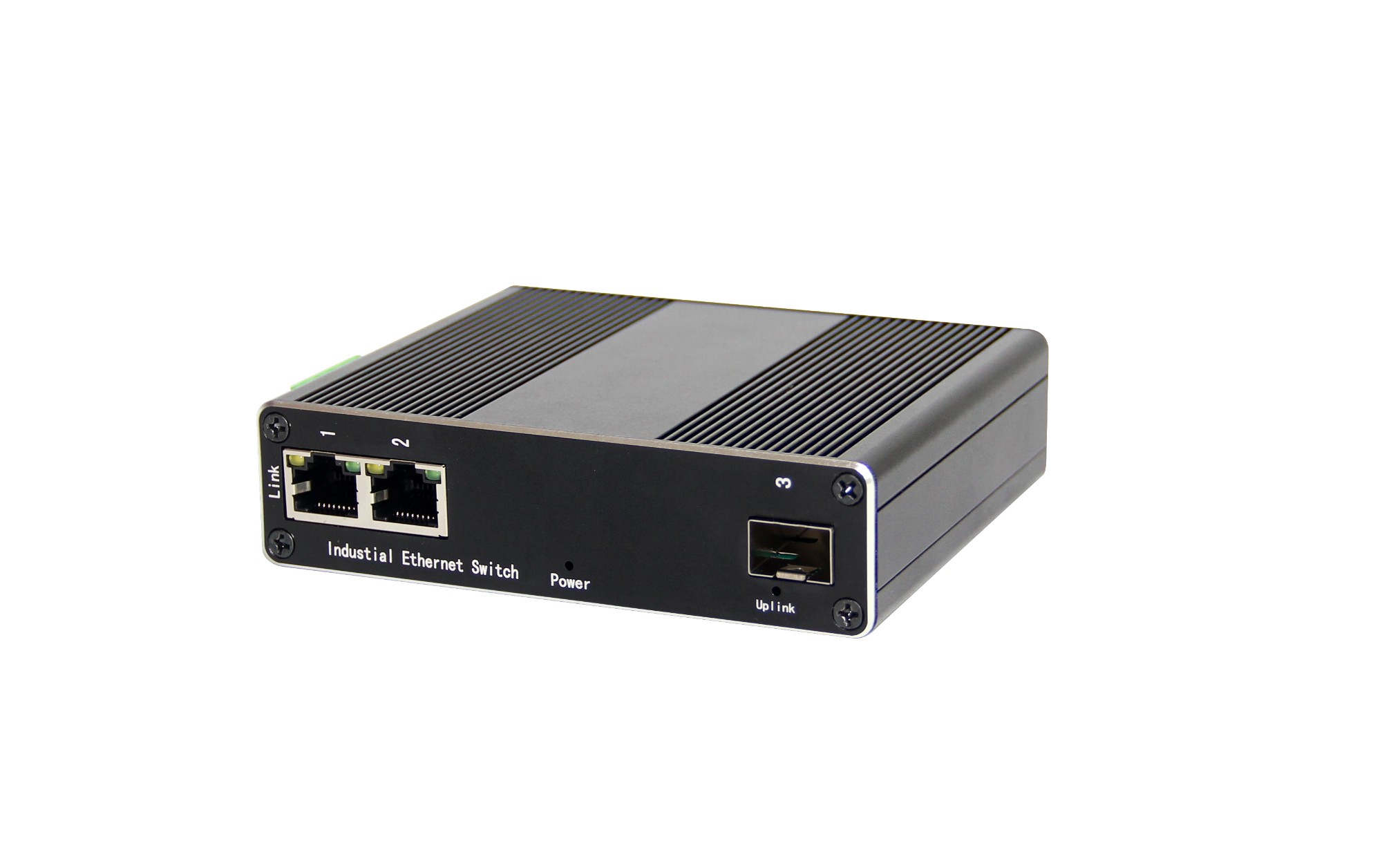

2-802.3af/at PoE 100/1G Base TX+1*2.5G Gigabit unmanaged Industrial POE Switch

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC48-58V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★ ★ Long service life, average trouble-free time of 300,000 hours, 5-year warranty.
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Product introduction

Model No.

NEU1021GZP

Product description

2-802.3af/at PoE 100/1G Base TX+1*2.5G Gigabit unmanaged Industrial POE Switch

Ethernet interface

RJ45 Port

2-10/100/1000Base-TX POE (POE max 30W)

Optical port

1-100M/1G/2.5GBaseFX

Port Description

 RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optical port100M/1G/2.5GBaseFX (Optional SC/SFP port)

Power Parameters

Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage:  DC48 to 58V redundant dual inputs support reverse connection protection

LED Indicator

Power: Green

Interface indicator: Left of RJ45:Orange(POE)   Right of RJ45: Green(Data light)

Standards

Network Protocols

IEEE802.3 10BASE-T;IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab;1000Base-T;IEEE802.3z;IEEE802.3bz;;1000Base-X;2500Base-X;IEEE802.3x;

Twisted Pair

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Optional POE

Output Power:

IEEE 802.3af maximum power 15.4W

IEEE 802.3at maximum power 30W

POE port automatically recognizes af/at

POE power supply pins: corresponding pins V+ (1, 2) V- (3, 6)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

4K

Packet Buffer Size

2Mbit

Bandwidth

20G

Switching Delay

10μs

Power Consume

66W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

Push-in DIN rail

Weigh

0.40kg

Dimensions

115x86x30mm length x width x height)

Environmental Limits

Working temperature

-4075℃ -40167 °F

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class AEN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD):±4kV Contact discharge,±8kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(801000MHz)

IEC(EN)61000-4-4(EFT): power line:±2kV; data line:±2kV

IEC(EN)61000-4-5(Surge): power:±2kV CM/±1kV DM; data:±1kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz150kHz),10V(150kHz80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC(EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5years

Package Contents

Device

1 x NEU1021GZP switch

Documentation

1 x quick installation guide

1 x warranty card

Installation Dimension                                                                 Installation Methods

image.png           image.png


Model Info.

Model

Description

NEU1021GZP-SFP

2-802.3af/at PoE 100/1G Base TX+1-1.25G/2.5G SFP Gigabit 2.5G Unmanaged Industrial POE switch - 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

SFP Module and AC to DC power adapter are not included.

NEU1021GZP-SC20

2-802.3af/at PoE 100/1G Base TX+1-1.25G/2.5G optical 1*9 (Single Mode(1310mm), Dual, SC20) Gigabit 2.5G Unmanaged Industrial POE switch - 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

AC to DC power adapter is not included.

NEU1021GZP-SC2

2-802.3af/at PoE 100/1G Base TX+1-1.25G/2.5G optical 1*9  (Multi Mode(1310mm),  Dual, SC2) Gigabit 2.5G Unmanaged Industrial POE switch - 35mm Din-rail design - DC48~58V power supply - Wide Temperature -40℃-75℃

AC to DC power adapter is not included.

NEU1021GZP-SC20A

2-802.3af/at PoE 100/1G Base TX+1-1.25G/2.5G optical 1*9 (Single Mode(1310mm/A), Single, SC20) Gigabit 2.5G Unmanaged Industrial Media Converter - 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

AC to DC power adapter is not included.

NEU1021GZP-SC20B

2-802.3af/at PoE 100/1G Base TX+1-1.25G/2.5G optical 1*9 (Single Mode(1550mm/B), Single, SC20) Gigabit 2.5G Unmanaged Industrial Media Converter - 35mm Din-rail design- DC48~58V power supply- Wide Temperature -40℃-75℃

AC to DC power adapter is not included.
