5-port RJ45+1G SFP Gigabit unmanaged Industrial POE Switch

★The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.
★Using high-performance chips and the latest industrial design
★Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.
★Supports redundant DC48-58V wide voltage and reverse connection protection.
★The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 75℃
★ ★ Long service life, average trouble-free time of 300,000 hours, 5-year warranty.
★Din-rail installation (in the control cabinet or directly on the automation equipment).
★Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level.

Specification
Product Introduction
Model	NEU1051GP
Product description	5-port RJ45+1G SFP Gigabit unmanaged Industrial POE Switch
Ethernet interface
RJ45 Port	5-10/100/1000Base-TX POE
Optical Port	1-100/1000MBase-FX
Port Description	RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive Optical port：100/1000BaseFX (Optional SC/FC/ST/SFP)
Standards
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;
POE Standard
Optional POE	Output Power : IEEE 802.3af maximum power 15.4W IEEE 802.3at maximum power 30W POE port automatically recognizes af/at POE power supply pins: corresponding pins V+ (1, 2) V- (3, 6)
Switch Properties
Transmission Method	Store and forward
MAC Address	4K
Cache	4Mbit
Bandwidth	10G
Switching Delay	<10μs
Power consumption	<126W
Power Parameters
LED Indicator	Power: Green Uplink: Green Interface indicator: Left of RJ45:Orange(POE) Right of RJ45: Green(Data light)
Power	Connection: 1 removable 5-contact terminal block(s) Input voltage: DC48 to 58V redundant dual inputs support reverse connection protection
Environmental Limits
Operating Temperature	-40～75 °C（-40～167 °F）
Storage Temperature	-40～85 °C（-40～185 °F）
Ambient Relative Humidity	5%～95%(non-condensing）
Standards and Certifications
Safety	EN 62368-1(LVD)
EMI	FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS	IEC(EN)61000-4-2(ESD): ±8kV Contact, ±8kV Indirect,±15kV Air IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): power line:±4kV; data line:±2kV IEC(EN)61000-4-5(Surge): power:±6kV CM/±4kV DM; data:±4kV IEC(EN)61000-4-6(RF conduction):3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s IEC(EN )61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Physical Characteristics
Enclosure	Wavy aluminum alloy
Protection level	IP40

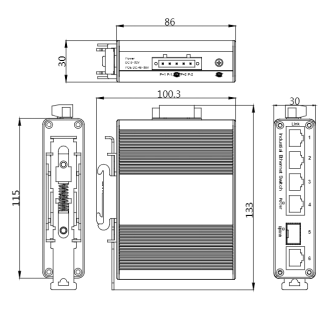

Dimensions	115x86x30mm （length x width x height)
Weigh	0.45kg

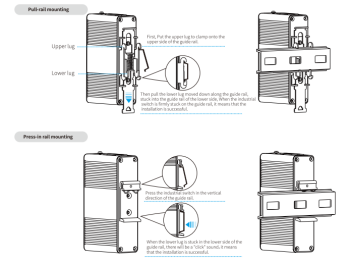

Installation	Push-in DIN rail
